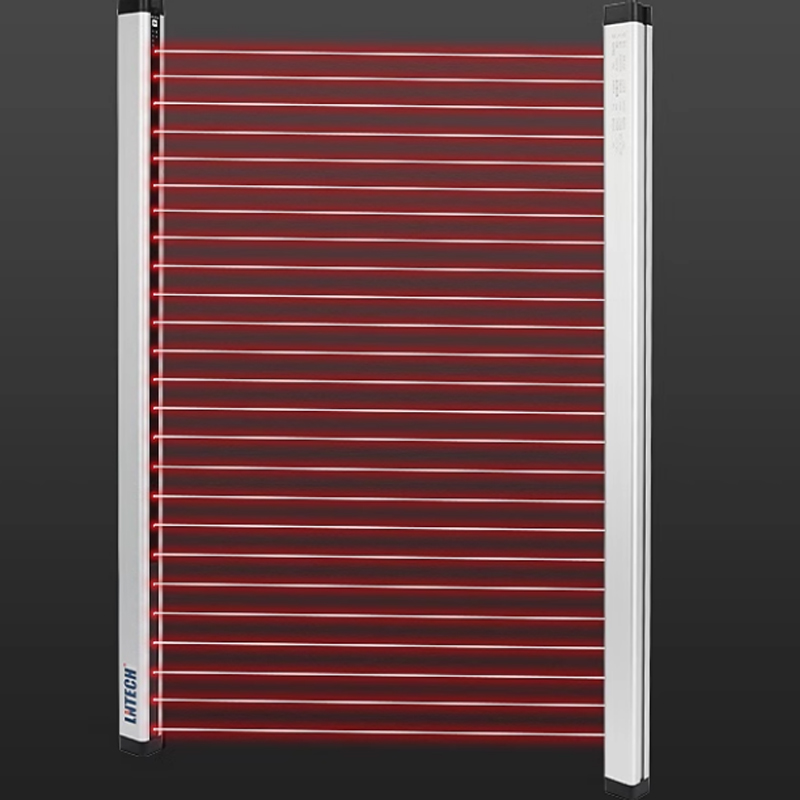

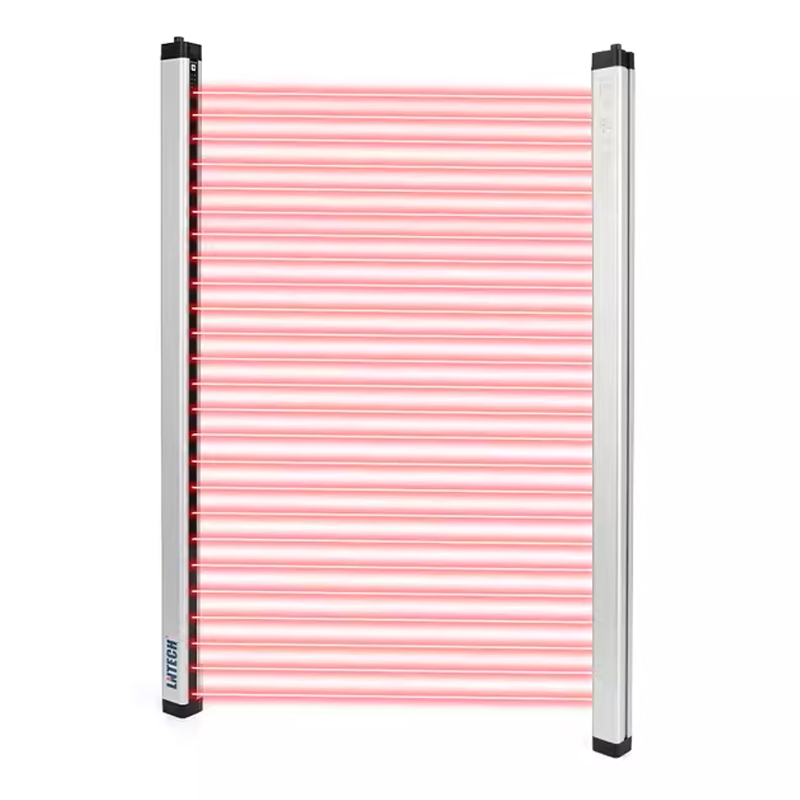

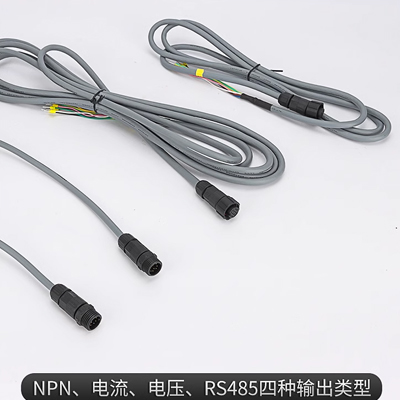

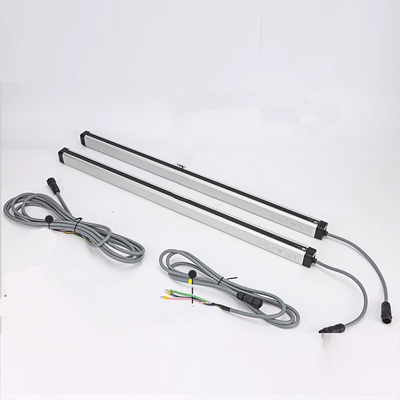

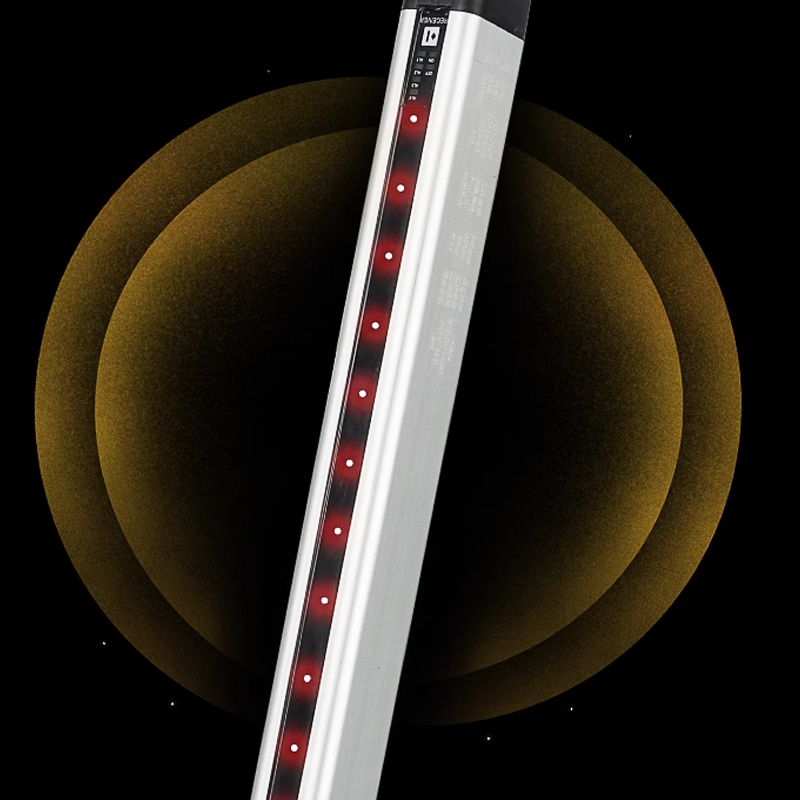

Industrial inspection and measurement light curtain grating
description2
Details
Grating Detailed Parameters
Optical axis spacing |
1.25MM |
2.5MM |
5MM |
10MM |
20MM |
Light distance |
3M |
3M |
3M |
5M |
5M |
Minimum detected object |
3.2MM |
5MM |
7.5MM |
20MM |
30MM |
One-sided error |
±0.625MM |
±1.25MM |
±2.5MM |
±5MM |
±10MM |
Scan cycle |
80USx beam number +7MS |
||||
Working power supply |
DC12V~24V |
||||
Working current |
<200MA |
||||
Load current |
<200MA |
||||
Protection level |
IP65 |
||||
Operating temperature |
-10°C~+55°C |
||||
environment humidity |
20°C, RH≤85% |
||||
Anti-light interference |
10000LUX(incident angle≥5°) |
||||
Anti-vibration |
Frequency: 10~55HZ, amplitude: 0.35MM |
||||
Impact resistance |
10G, 116MS, X, Y, Z axis, 1000 times each time |
||||

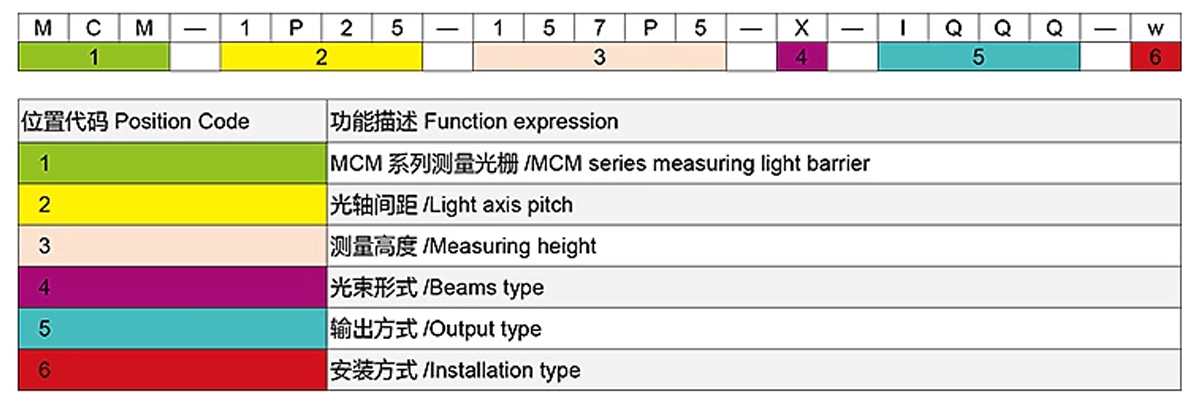

Model Description
Product size and selection table
Optical axis spacing 1.25mm (2.5 cross) | |||
model |
Number of beams |
Measure height |
L |
MCM-1P25-157P5 |
127 |
157.5 |
223 |
MCM-1P25-157P5 |
191 |
237.5 |
303 |
Optical axis spacing 1.25mm (parallel) | |||
MCM-2P5-157P5 |
64 |
157.5 |
223 |
MCM-2P5-237P5 |
96 |
237.5 |
303 |
MCM-2P5-317P5 |
128 |
317.5 |
383 |
MCM-2P5-397P5 |
160 |
397.5 |
463 |
MCM-2P5-477P5 |
192 |
477.5 |
543 |
MCM-2P5-557P5 |
224 |
557.5 |
623 |
Optical axis spacing 5mm | |||
MCM-5-155 |
32 |
155 |
223 |
MCM-5-235 |
48 |
235 |
303 |
MCM-5-315 |
64 |
315 |
383 |
MCM-5-395 |
80 |
395 |
463 |
MCM-5-475 |
96 |
475 |
543 |
MCM-5-555 |
112 |
555 |
623 |
MCM-5-635 |
128 |
635 |
703 |
MCM-5-715 |
144 |
715 |
786 |
MCM-5-795 |
160 |
795 |
863 |
MCM-5-875 |
176 |
875 |
943 |
MCM-5-955 |
192 |
955 |
1023 |
MCM-5-1035 |
208 |
1035 |
1103 |
MCM-5-1115 |
224 |
1115 |
1183 |
MCM-5-1195 |
240 |
1195 |
1263 |
Optical axis spacing 5mm | |||
model |
Number of beams |
Measure height |
L |
MCM-10-150 |
16 |
150 |
223 |
MCM-10-230 |
24 |
230 |
303 |
MCM-10-310 |
32 |
310 |
383 |
MCM-10-390 |
40 |
390 |
463 |
MCM-10-470 |
48 |
470 |
543 |
MCM-10-550 |
56 |
550 |
623 |
MCM-10-630 |
64 |
630 |
703 |
MCM-10-710 |
72 |
710 |
786 |
MCM-10-790 |
80 |
790 |
863 |
MCM-10-870 |
88 |
870 |
943 |
MCM-10-950 |
96 |
950 |
1023 |
MCM-10-1030 |
104 |
1030 |
1103 |
MCM-10-1110 |
112 |
1110 |
1183 |
MCM-10-1190 |
120 |
1190 |
1263 |
MCM-10-1270 |
128 |
1270 |
1343 |
MCM-10-1350 |
136 |
1350 |
1423 |
MCM-10-1430 |
144 |
1430 |
1503 |
MCM-10-1510 |
152 |
875 |
1583 |
MCM-10-1590 |
160 |
955 |
1663 |
MCM-10-1670 |
168 |
1035 |
1743 |
MCM-10-1750 |
176 |
1115 |
1823 |
MCM-10-1830 |
184 |
1195 |
1903 |
MCM-10-1910 |
192 |
1115 |
1983 |
MCM-10-1990 |
200 |
1195 |
2063 |
MCM-10-2070 |
208 |
635 |
2143 |
MCM-10-2150 |
216 |
715 |
2223 |
MCM-10-2230 |
224 |
795 |
2303 |
MCM-10-2310 |
232 |
875 |
2383 |
MCM-10-2390 |
240 |
955 |
2463 |
MCM-10-2470 |
248 |
1035 |
2543 |
Optical axis spacing 20mm | |||
model |
Number of beams |
Measure height |
L |
MCM-20-140 |
8 |
140 |
223 |
MCM-20-220 |
12 |
220 |
303 |
MCM-20-300 |
16 |
300 |
383 |
MCM-20-380 |
20 |
380 |
463 |
MCM-20-460 |
24 |
460 |
543 |
MCM-20-540 |
28 |
540 |
623 |
MCM-20-620 |
32 |
620 |
703 |
MCM-20-700 |
36 |
700 |
786 |
MCM-20-780 |
40 |
780 |
863 |
MCM-20-860 |
44 |
860 |
943 |
MCM-20-940 |
48 |
940 |
1023 |
MCM-20-1020 |
52 |
1020 |
1103 |
MCM-10-1100 |
56 |
1100 |
1183 |
MCM-20-1180 |
60 |
1180 |
1263 |
MCM-20-1260 |
64 |
1260 |
1343 |
MCM-20-1340 |
68 |
1340 |
1423 |
MCM-20-1420 |
72 |
1420 |
1503 |
MCM-20-1500 |
76 |
1500 |
1583 |
MCM-20-1580 |
80 |
1580 |
1663 |
MCM-20-1660 |
84 |
1660 |
1743 |
MCM-20-1740 |
88 |
1740 |
1823 |
MCM-20-1820 |
92 |
1820 |
1903 |
MCM-20-1900 |
96 |
1900 |
1983 |
MCM-20-1980 |
100 |
1980 |
2063 |
MCM-20-2060 |
104 |
2060 |
2143 |
MCM-20-2140 |
108 |
2140 |
2223 |
MCM-20-2220 |
112 |
2220 |
2303 |
MCM-20-2300 |
116 |
2300 |
2383 |
MCM-10-2380 |
120 |
2380 |
2463 |
MCM-20-2460 |
124 |
2460 |
2543 |
MCM-20-2540 |
128 |
2540 |
2623 |
MCM-20-2620 |
132 |
2620 |
2703 |
MCM-20-2700 |
136 |
2700 |
2783 |
MCM-20-2780 |
140 |
2780 |
2863 |
MCM-20-2860 |
144 |
2860 |
2943 |
MCM-20-2940 |
148 |
2940 |
3023 |
MCM-10-3020 |
152 |
3020 |
3103 |
