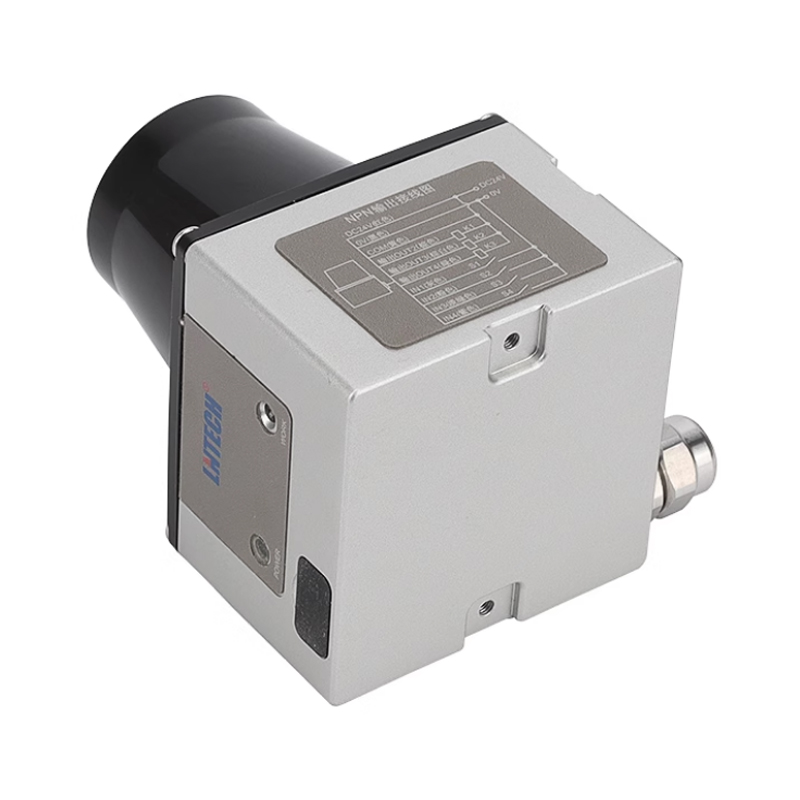

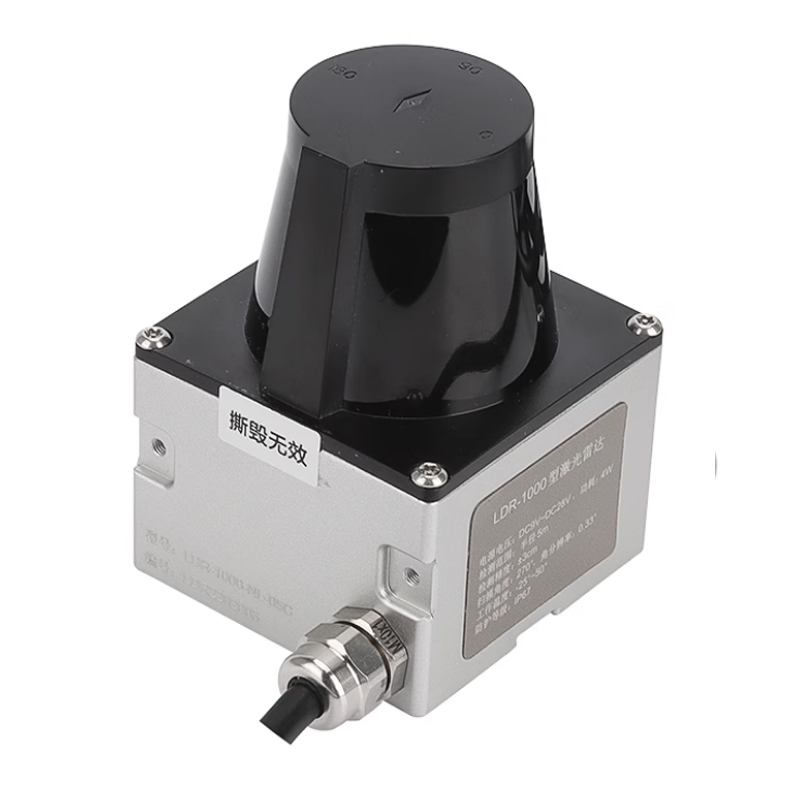

Lidar sensor obstacle avoidance single line sensing
description2
Details
Multi-angle resolution can be adjusted: the angle resolution is switchable at 0.25°, 0.33°, 0.5°, and 1°, and different angle resolutions can be used for different scenarios.
Compact size and wide application: Small size, easy to assemble and safe, suitable for a variety of AGV models.
Precise temperature control design: working temperature range -25°C~+50°C.
Anti-light intensity: multi-level light filtering treatment; can effectively avoid strong light interference.
Reliable sealed design: protection grade IP67, waterproof and dustproof.
Sturdy shell: The aluminum alloy shell is sturdy, durable, shock-resistant and drop-resistant.
Specification
Security area scope |
5M |
measurement accuracy |
±3CM |
scanning frequency |
15HZ |
Anti-light interference |
80KLUX |
Switching output |
3 zone outputs + 1 sync/status output |
Number of zone groups |
16 |
Scan angle |
270° |
Detection angle |
30MM,40MM,5OMM,70MM |
Angular resolution |
0.25°/0.33°/0.5°/1° |
Auto reset delay |
0S...60S, adjustable |
Laser safety level |
Class 1 Laser Eye Safety |
Laser wavelength |
905MM |
Measurement data output interface |
RS-232 |
Configuration and diagnostic interface |
R-232 |
Supply voltage |
DC9~28V- |
Power consumption |
4W |
Housing size |
60mmLx60mmwx85mmH |
Shell material |
Aluminum alloy |
Protection level |
IP67 |
Working temperature |
-25°C~+50°C |
Storage temperature range |
-40°C~+70°C |
