LN2002/04 series digital load tester calibration meter tonnage meter
description2
Details
Resistant to cold and heat to cope with harsh environments: the scanner has built-in temperature control settings to accurately control the working temperature, and the working temperature range is 0'C~+50°C

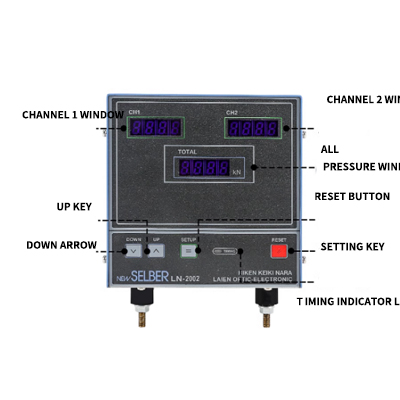

Clear parameters: The parameters on the back of the instrument are clear and the wiring method is clear at a glance.
Insulated terminal blocks: easy to crimp, tight wiring and secure installation
High-quality connecting cable: The connecting cable is resistant to bending, not easy to oxidize, and durable
Rugged shell: Steel plate shell, durable, shock-resistant and drop-resistant
Scanner Parameters
Small stature -big use -no space
model |
LN-2022/2004 |
Sensor model |
RS-702H |
Maximum pressurization |
1-9999kN |
Monitor channel |
2 channels, 4 channels |
signal input |
External reset signal input, parity signal |
Signal output |
1A.1B (stop output), AC250V2A MAX |
Power supply for co-located |
DC12V,250MA |
Maximum speed |
1500 SPM |
Operating temperature range |
0-50*C |
Use humidity range |
30~85%6 (no condensation) |
Use surroundings |
No corrosive gas or dust |
power supply |
AC100-230V |
Power consumption |
≤15W |
Dimensions |
120(W)x122(H]X140(D)MM(excluding terminal block |

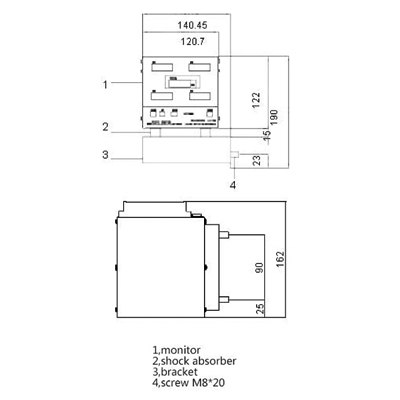

Product Size
Product Standard
Notice
We produce and ship directly from the original factory, avoiding middlemen from making price differences and benefiting consumers.
Excellent quality, priority in the entire network, you can buy with confidence, strong after-sales support
Minimize the impact and damage of products during transportation
5-year warranty service
