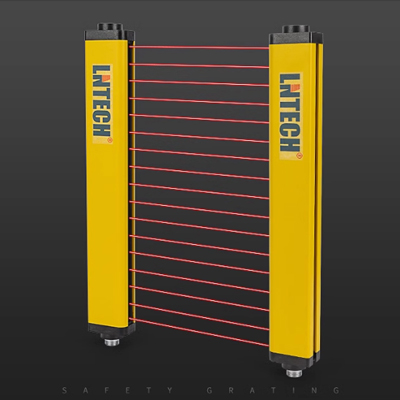

Safety grating light curtain sensor stamping equipment
description2
Details
The photosensitive surface is sensitive: the photosensitive surface transmits light clearly and easily to the public, and has strong anti-interference. This characteristic makes this product very suitable for use in areas such as optical identification systems, photoelectric sensors and high-precision measurement equipment.
Sealing design: Built-in rubber gasket, the internal components are isolated from the outside world, and the waterproof and dustproof effect is good. This sealing design makes the product very suitable for applications in harsh environments.

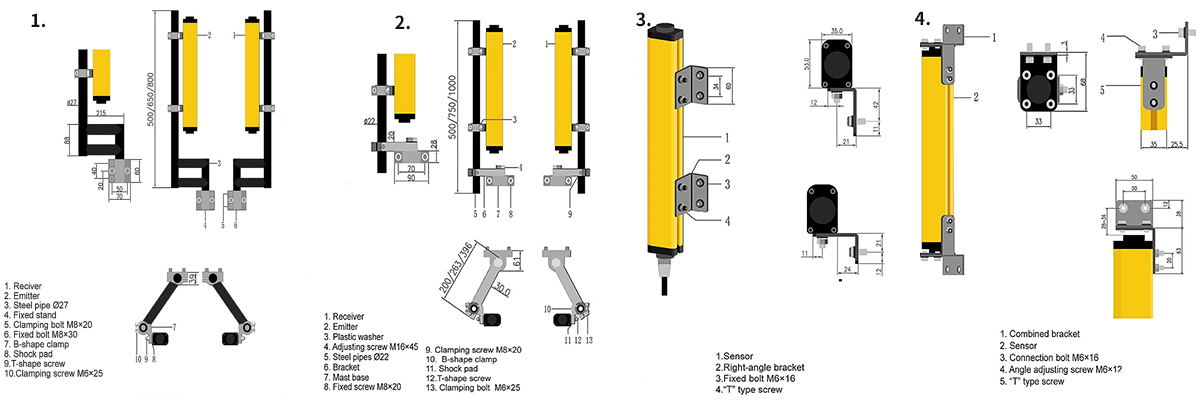

Card slot design on the back: It can be flexibly installed according to the product direction, which is convenient and fast. This design makes product installation more flexible, and the direction can be adjusted according to actual needs. It is suitable for a variety of different equipment and scenarios, such as surveillance cameras, optical instruments, and robot vision systems.
Aviation plug: High-quality aviation plug is not easy to rust, resistant to pressure and corrosion, and has fast signal transmission. The characteristics of this aviation plug make the product very suitable for high-demand signal transmission fields.

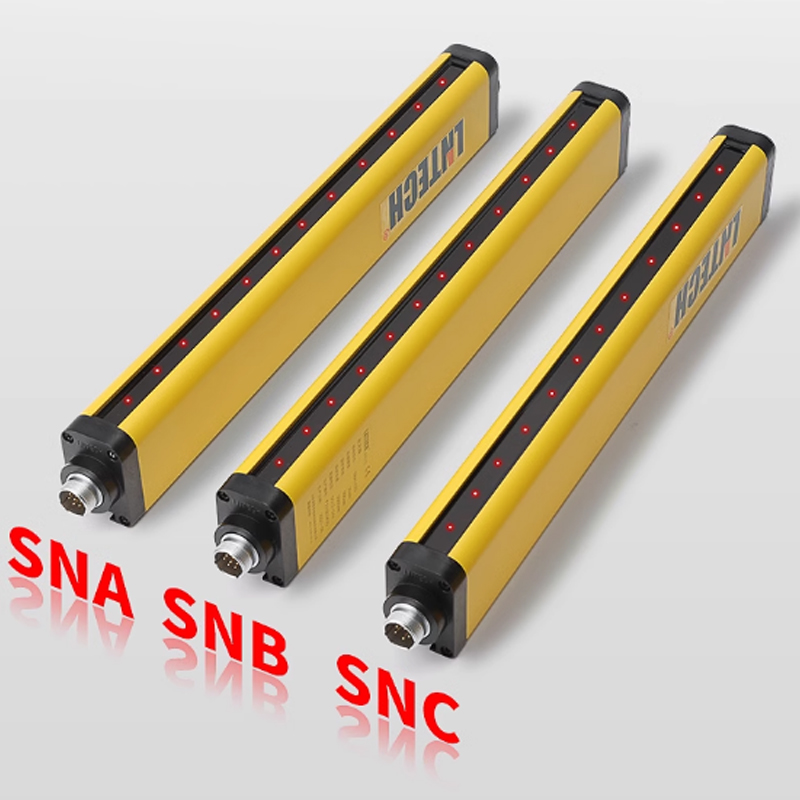

SNA/B/C specifications and models are complete, you can purchase the appropriate model according to your needs
applications
- 1.Stamping machinery2.Paper cutting wiring3.Injection molding machinery4.Automated machinery5.Bending machinery6.Transmission machinery
series |
A series |
B/C series |
Protection length |
"0~3000MM 0-8000 (standard),5~40000MM |
|
Protection height |
Optical axis spacing x (number of optical |
|
Optical axis spacing |
20MM,40MM,80MM |
|
Detection accuracy |
30MM,50MM,100MM |
|
Working power supply |
DC12V~24V |
|
Working current |
<200MA |
|
Load current |
<200MA |
|
Response time |
<10MS |
|
diagnostic coverage |
>99% |
|
mean time between |
120A |
|
Protection level |
IP65 |
|
Operating temperature |
-10°C~+55°C |
|
environment humidity |
20°C, RH≤85% |
|
Anti-light interference |
10000LUX(incident angle≥5°) |
|
Anti-vibration |
Frequency: 10~55HZ, amplitude: 0.35MM |
|
Impact resistance |
"15G, 16MS, X, Y, Z,1000 times per axis" |
|

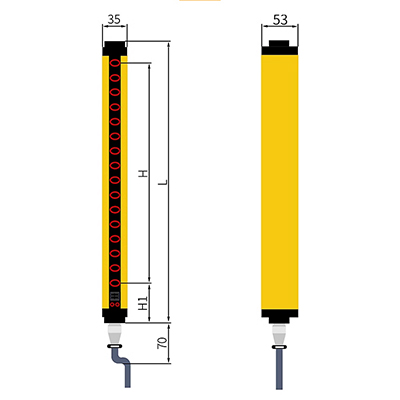

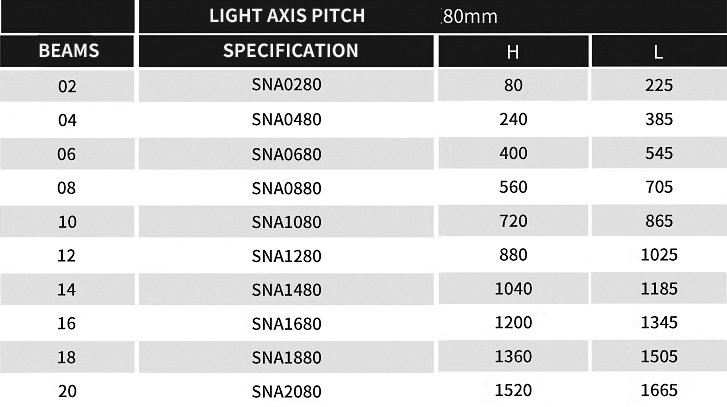

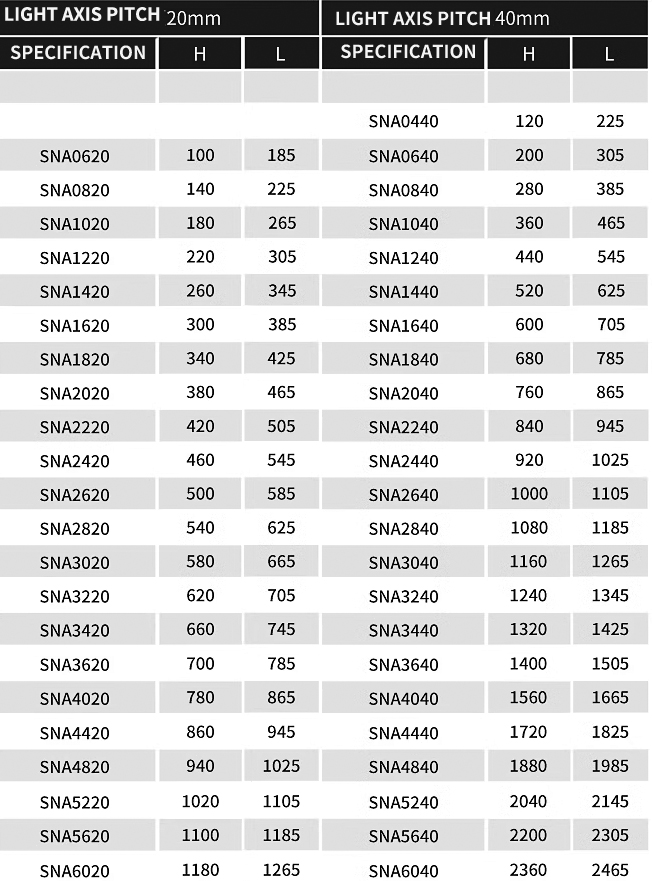

Product size and selection table
- L:sensor heightH:protection heightH1: distance from 1st beam to bottom cover ,Light axis pitch ,beams,specification

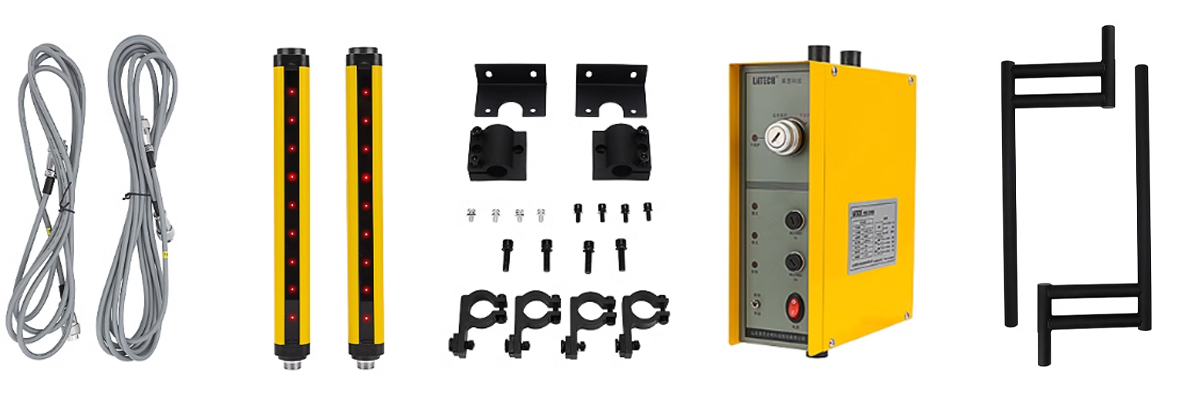

Configuration
Supply Voltage
