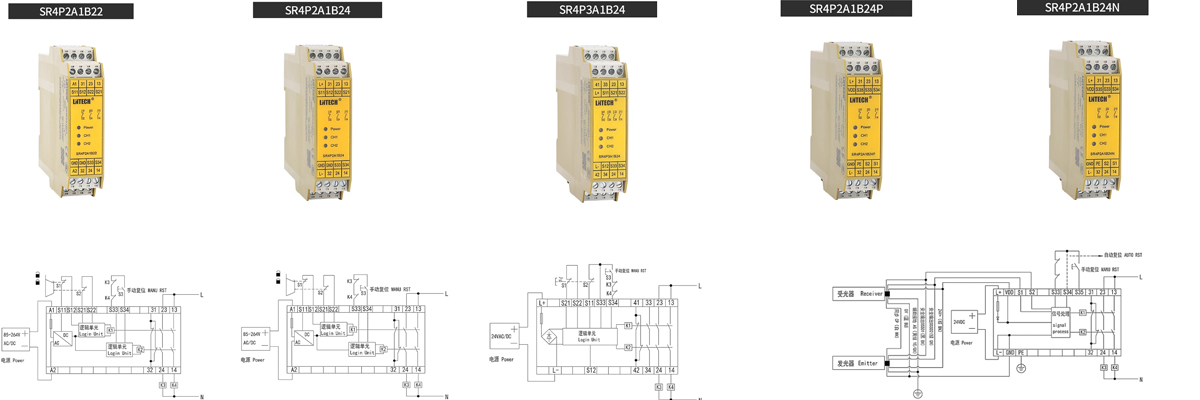

Safety relay SR4P2A1B22 SR4P2A1B24N/P SR4P2A1B24N/PM
description2
Details
specification
SR4P2A1B22 |
SR4P2A1B24 |
|
Output contact |
2N/0,1N/C |
|
reset mode |
automatic or manual |
|
Working power supply |
DC/AC85-264V |
DC24V |
Power consumption |
3W |
|
mean time between dangerous |
60A |
111A |
average dangerous failure |
4.7x10^8 |
2.5x10^8 |
Switch capacity |
AC-15,5A/250V;DC-13,6A/24V |
|
Release buffer time |
<15MS |
|
diagnostic coverage |
>99% |
|
Protection level |
IP50 |
|
Operating temperature |
-10~+55°C |
|
storage temperature |
-40~+85°C |
|
Wire cross-sectional area |
Maximum MAX.2.5MM² |
|
Cable length |
Maximum length MAX.10M |
|

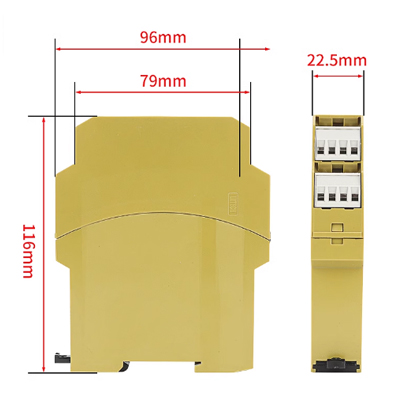

size |
96(L)x22.5(W)x116(H)MM |
|
Standards compliant |
EN 60947-5-1，EN 61000-6-2， |
|
SR4P3A1B24 |
SR4P2A1B24N/P |
|
Output contact |
3N/0,1N/C |
2N/0,1N/C |
reset mode |
automatic or manual |
|
Working power supply |
DC24V |
|
Power consumption |
3W |
|
mean time between dangerous |
111A |
374A |
average dangerous failure |
2.5x10^8 |
2.6x10^8 |
Switch capacity |
AC-15,5A/250V;DC-13,6A/24V |
|
Release buffer time |
<15MS |
|
diagnostic coverage |
>99% |
|
Protection level |
IP50 |
|
Operating temperature |
-10~+55°C |
|
storage temperature |
-40~+85°C |
|
Wire cross-sectional area |
Maximum MAX.2.5MM2 |
|
Cable length |
Maximum lengthMAX.10M |
|
size |
96(L)x22.5(W)x116(H)MM |
|
Standards compliant |
EN 60947-5-1，EN61000-6-2， |
|
SR4P2A1B24C |
SR4P2A1B24S |
|
Output contact |
automatic or manual |
|
reset mode |
2N/0,1N/C |
|
Working power supply |
DC24V |
|
Power consumption |
3W |
|
mean time between dangerous |
94A |
398A |
average dangerous failure |
2.0x10^8 |
|
Switch capacity |
AC-15,5A/250V;DC-13,6A/24V |
|
Release buffer time |
<15MS |
|
diagnostic coverage |
>99% |
|
Protection level |
IP50 |
|
Operating temperature |
-10~+55°C |
|
storage temperature |
-40~+85°C |
|
Wire cross-sectional area |
Maximum MAX.2.5MM2 |
|
Cable length |
Maximum lengthMAX.10M |
|
size |
96(L)x22.5(W)x116(H)MM |
|
Standards compliant |
EN 60947-5-1，EN61000-6-2， |
|

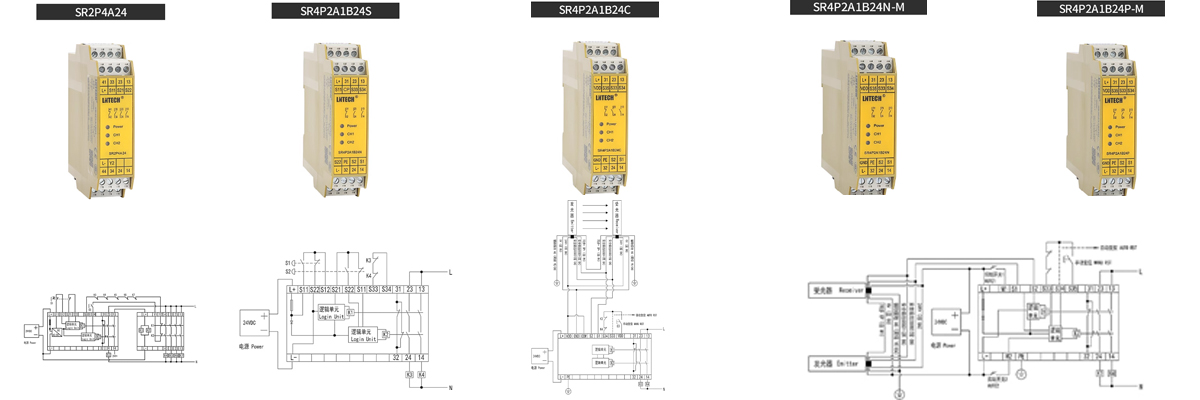

SR4P2A1B24N/P-M |
SR2P4A24 |
|
Output contact |
2N/0,1N/C |
4N/0 |
reset mode |
automatic or manual |
|
Working power supply |
DC24V |
|
Power consumption |
3W |
|
mean time between dangerous |
374A |
111A |
average dangerous failure |
2.0x10^8 |
2.5x10^8 |
Switch capacity |
AC-15,5A/250V;DC-13,6A/24V |
|
Release buffer time |
<15MS |
|
diagnostic coverage |
>99% |
|
Protection level |
IP50 |
|
Operating temperature |
-10~+55°C |
|
storage temperature |
-40~+85°C |
|
Wire cross-sectional area |
Maximum MAX.2.5MM2 |
|
Cable length |
Maximum length MAX.10M |
|
size |
96(L)x22.5(W)x116(H)MM |
|
Standards compliant |
EN 60947-5-1，EN61000-6-2， |
|
Product Model
use model |
Safety door switch emergency stop switch |
two-hand button |
Dual NPN output safety light curtain |
Dual PNP outputsafety light curtain |
inhibitory function |
SR4P2A1B22 |
✔ |
|
|
|
|
SR492A1B24 |
✔ |
|
|
|
|
SR4P3A1B24 |
✔ |
|
|
✔ |
|
SR4P2A1B24S |
|
✔ |
|
|
|
SR4P2A1B24N |
|
|
✔ |
|
|
SR4P2A1B24P |
|
|
|
✔ |
|
SR492A1B24N-M |
|
|
✔ |
|
|
SR4P2A1B24P-M |
|
|
|
✔ |
✔ |
SR4P2A1B24C |
|
|
✔ |
✔ |
✔ |
Installation Guide
