SM punch photoelectric protection safety floor mat

series

G series

H series

thickness

15MM

20MM

quality

21kg/m²

28KG/M2

maximum pressure

2,000N (using 80MM test piece)

8,000N (using 80MM test piece)

Operating force

>200N

>300N

Material

PVC (polyvinyl chloride)

NBR,CR (rubber)

Mechanical life

>1 million times/1

>3 million times/3

maximum pressure

-20~+50°C

-30~+65°C

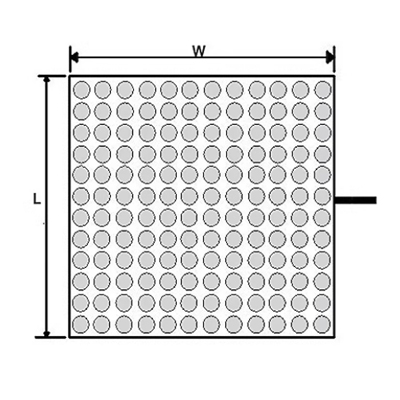

size

Special customization if the area is greater than 1.5M' or the length
 of one side is greater than 3MM

Invalid area

Cable lead side ≤20MM, non-cable lead side ≤10MM

Cable length

5M

Applicable standards

EN1760-1

Protection level

IP65

Anti-slip grade

R9

model

SM3P2A1B24

Security Level

PL d

Input voltage

24V DC

Environmental compliance

EN 60068-2-78

voltage tolerance

士10%

Operating temperature

-10

Power consumption

<3W

Environmental compliance

EN 60068-2-78

output method

2NO+1NC

Protection level

IP50

Maximum switching capacity

AC-15,5A/250DC-13,6A/24V

Anti-interference level

IEC61131-3

Contact fuse protection

5AT or 6AF

Withstand voltage level

AC 1890V50/60Hz 1min

Response time

<30MS

Wire cross-sectional area

0.2-2.5MM²

Applicable standards

EN ISO 13849-1EN1760-2EN 61000-6-2EN
61000-6-3

Torque settings for terminals

0.5Nm

size

96(L)x22.5(W)x116(H)

Vibration requirements

EN 60068-2-6Frequency:10~55HZ:15
GAmplitude:0.35MM

Install

DIN RAIL(IEC60715/TH355TH35-7-15)
