SQL punch photoelectric protection safety grating

Introducing the SQL Punch photoelectric protection safety light grid, a cutting-edge safety light curtain sensor designed to provide ultra-long distance protection for a variety of industrial machinery. This innovative device incorporates seven core technologies to ensure the highest levels of safety and performance in industrial environments.

product details

description2

Details

SQL punch safety grating has ultra-long distance protection function and is suitable for stamping machinery, paper cutting and wiring, injection molding machinery, automation machinery, bending machinery, transmission machinery, etc. Provides 1, 2, and 3 side area protection to ensure comprehensive safety coverage of operators and equipment.

SQL Punch safety gratings have complete specifications and models, are easy to install, simple to wire, and save time and effort in installation. It also includes complete self-test capabilities for increased operational reliability and peace of mind.

One of the key features of SQL Punch safety light grids is their strong immunity to electromagnetic and optical interference, ensuring consistent and reliable performance in challenging industrial environments. In addition, it has excellent waterproof and dustproof properties and is suitable for use in a variety of working conditions.

The device is equipped with dual NPN/PNP signal outputs, and the optional controller provides dual relay signal outputs, providing flexibility and compatibility with different control systems.

Overall, the SQL Punch photoelectrically protected safety light grid sets a new standard for industrial safety sensors, providing advanced protection and performance for a wide range of industrial applications. With its cutting-edge technology and rugged design, it brings peace of mind and reliability to industrial safety operations.

Specification

Protection length	1 side protection	2 side protection	3 side protection
	0~60000MM(standard)	0~30000MM(standard)	0~24000MM(standard)
	0~120000MM(extra long)	0~80000MM(extra long)	0~60000MM(extra long)
Protection height	Optical axis spacing x(number of beams-1)
Optical axis spacing	40MM,80MM,160MM,320MM
Working power supply	DC12V~24V
Working current	<200MA
Load current	<200MA
Response time	<10MS
diagnostic coverage	>99%
mean time between dangerous failures	120A
Protection level	IP65
Operating temperature	-10°C~+55°C
environment humidity	20°C，RH<85%
Anti-light interference	10000LUX(incident angle>5°)

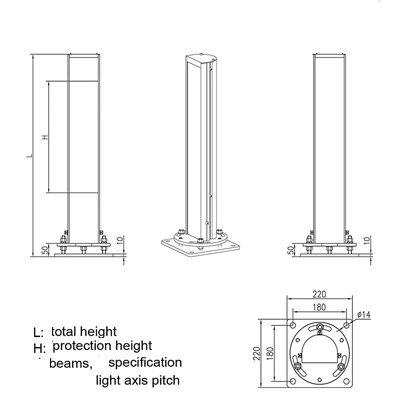

Product size and selection table

SQL punch photoelectric protection safety grating detail3er

	Optical axis spacing40mm
beam	Specification	H	L
16	SQL1640	600	1000
20	SQL2040	760	1200
24	SQL2440	920	1500
	Optical axis spacing80mm
beam	Specification	H	L
8	SQL0880	560	1000
12	SQL1280	880	1500
16	SQL1680	1200	1800
	Optical axis spacing160mm
beam	Specification	H	L
4	SQL04160	480	1000
6	SQL06160	800	1500
8	SQL08160	1120	1800
	Optical axis spacing320mm
beam	Specification	H	L
3	SQL03320	640	1000
4	SQL04320	960	1500
5	SQL05320	1280	1800
